LispWorks Personal Edition
http://www.lispworks.com/downloads/lww-per.html
Sample Code Library
http://www.frank-buss.de/lisp/clim.html
http://www.peter-herth.de/ltk/
Painter
The Tilt Maze Game
http://www.lispworks.com/downloads/lww-per.html
Sample Code Library
http://www.frank-buss.de/lisp/clim.html
http://www.peter-herth.de/ltk/
Painter
(require "clim")
(in-package :clim-user)
;; call it with
;; (clim-user::show-painter)
(defclass lines-pane (basic-pane)
((x :initform 0) (y :initform 0) (mouse-pressed :initform nil)))
(defmethod initialize-instance :after ((pane lines-pane) &key &allow-other-keys)
(setf (sheet-enabled-p pane) t))
(defmethod compose-space ((pane lines-pane) &key width height)
(declare (ignore width height))
(make-space-requirement :max-width 100000
:max-height 100000))
(defmethod handle-event ((pane lines-pane)
(event pointer-button-press-event))
(with-slots (x y mouse-pressed) pane
(setf x (pointer-event-x event))
(setf y (pointer-event-y event))
(setf mouse-pressed t)))
(defmethod handle-event ((pane lines-pane)
(event pointer-motion-event))
(with-slots (x y mouse-pressed) pane
(when mouse-pressed
(let ((x2 (pointer-event-x event))
(y2 (pointer-event-y event)))
(draw-line* pane x y x2 y2)
(setf x x2)
(setf y y2)))))
(defmethod handle-event ((pane lines-pane)
(event pointer-button-release-event))
(setf (slot-value pane 'mouse-pressed) nil))
(define-application-frame painter-frame ()
()
(:pane
(clim:make-pane 'lines-pane))
(:geometry :width 400 :height 400))
(defun show-painter ()
(let ((frame (make-application-frame 'painter-frame)))
(run-frame-top-level frame)))
The Tilt Maze Game
(require "clim")
(in-package :clim-user)
;;; tilt-mazes, a Lisp implementation of the game at
;;; http://www.clickmazes.com/newtilt/ixtilt2d.htm
;;;
;;; Copyright Frank Buss
;;; TODO: solve-maze for Multi-Goal mazes
;;; start text mode game with (clim-user::play-maze (number))
;;; and CLIM game with (clim-user::play-maze-clim)
;; the boards
(defconstant *mazes*
'((("###########"
"#o # #"
"# ### # #"
"# #"
"# # ###"
"# # #"
"# # ### #"
"# #"
"# ### # ###"
"# # T#"
"###########")
("Single-Goal Maze S5A (5x5)" "layout by Andrea - Aug 99"))
(("#############"
"# # # #"
"# # ### # #"
"# #"
"# # # # ### #"
"# # #o# #"
"# # ##### ###"
"# #T# #"
"### # # #"
"# #"
"# # # ###"
"# # # #"
"#############")
("Single-Goal Maze S6A (6x6)" "layout by Andrea - Aug 99"))
(("#############"
"# # #"
"# ### ###"
"# #"
"### ### # #"
"# #T#"
"# # ###"
"#o # #"
"# # ### #"
"# # #"
"### # # # #"
"# # # # #"
"#############")
("Single-Goal Maze S6B (6x6)" "layout by Andrea - Sept 99"))
(("###############"
"# # #"
"# # ### # #"
"# # #"
"### # # ### ###"
"#o # #"
"### # # #"
"# # #"
"# # ### ###"
"# # T#"
"# ### # ###"
"# # #"
"### # # ### #"
"# # # #"
"###############")
("Single-Goal Maze S7A (7x7)" "layout by Andrea - Aug 99"))
(("###############"
"# # # #"
"# # ### # ###"
"# o #"
"# # # #"
"# # # #"
"# ### # # # # #"
"# # # #"
"# ### # ###"
"# #"
"### # # ### #"
"# #T# #"
"# ### # # #"
"# # # #"
"###############")
("Single-Goal Maze S7B (7x7)" "layout by Andrea - Sept 99"))
(("###############"
"#o# # # #"
"# ### # # # #"
"# # #"
"### ### #"
"# #"
"# ### # # ### #"
"# # # #"
"### # # # #"
"# # #"
"# ### # ###"
"# # #"
"# # ##### # #"
"# # #T#"
"###############")
("Single-Goal Maze S7C (7x7)" "layout by Andrea - Sept 99"))
(("#################"
"# # # #"
"# ### # ### # #"
"# # #"
"### ### # # ###"
"#o # # #"
"### # # ### #"
"# # #"
"# # # #"
"# # #"
"# ### # ###"
"# # T#"
"# # ### ### #"
"# # #"
"# # # ### ###"
"# # # #"
"#################")
("Single-Goal Maze S8A (8x8)" "layout by Andrea - Sept 99"))
(("###################"
"# # # #"
"### # # ### # ###"
"# # # #"
"# ### ### # # # #"
"# # # #"
"# # # # # #"
"# # #o #"
"### # ### ### # ###"
"# # #"
"# ### ### # #"
"# T# # #"
"# ### # # ### ###"
"# # #"
"# # ### ### #"
"# # #"
"### ### # ### #"
"# # # #"
"###################")
("Single-Goal Maze S9A (9x9)" "layout by Andrea - Sept 99"))
(("###################"
"# # # # #"
"# # ### # # ###"
"# # #"
"# ### ##### ### # #"
"# # # # #"
"### # # # # #"
"# # #"
"# ### # ### ### #"
"# # # #"
"### # ### # #"
"# # # #"
"# # # # ### ###"
"# # # #"
"# # # ### # # #"
"# # # #"
"# ### # # ### #"
"# o# # T# #"
"###################")
("Single-Goal Maze S9B (9x9)" "layout by Andrea - Sept 99"))
(("#####################"
"#o# # # #"
"# # # ### # # #"
"# # #"
"# # # # ###"
"# # # #"
"### ### ##### #"
"# # # #"
"# ### # # # #"
"# # # #"
"### ### # # ### ### #"
"# # # #"
"# ### # # ### # #"
"# # # #"
"# ##### ### ###"
"# # # #"
"### # ### # ###"
"# # #"
"# ### # ### # #"
"# # # #T#"
"#####################")
("Single-Goal Maze S10A (10x10)" "layout by Andrea - Feb 98"))
(("#####################"
"#o# # # #"
"# ### # # ###"
"# # # #"
"# # # # # ### ### #"
"# # # # #"
"# # ### # # ### #"
"# # # #"
"# # # # ###"
"# # # #"
"### # ##### # #"
"# # # # #"
"# # # ### # ### #"
"# #"
"# ### # # ### ###"
"# # # #"
"# ##### # ### # # #"
"# # # # #"
"### # # ### # ### #"
"# # # #T#"
"#####################")
("Single-Goal Maze S10B (10x10)" "layout by Andrea - Feb 98"))
(("#####################"
"# #o # # #"
"# ### # # ### # #"
"# # #"
"# # # #"
"# # #"
"# # ### ### ### #"
"# # # #"
"# # ### ### # # #"
"# # # #"
"### # # # ### #"
"# # # #"
"# # # ### ### # #"
"# # #"
"# # ### ### # #"
"# # # #"
"# # ### # ###"
"# # # #"
"### # # ### ### #"
"# # # T# #"
"#####################")
("Single-Goal Maze S10C (10x10)" "layout by Andrea - Sept 99"))
(("#####################"
"#o# # # # #"
"# # # # ### #"
"# # #"
"# # ### # # # #"
"# # # # #"
"# # # # # ###"
"# # #"
"# # # ### # #"
"# # # #"
"### ### ##### ### ###"
"# # #"
"# ### # # ### # #"
"# # # #"
"### ### # ### # #"
"# # # # # #"
"# # # ### # # # # #"
"# # # #"
"# # # # # # # #"
"# # # # #T#"
"#####################")
("Single-Goal Maze S10D (10x10)" "layout by Robert Abbott - Sept 99"))
(("#####################"
"# # # # #"
"# # # ### # #"
"# o# # #"
"# ##### ### # # #"
"# # # #"
"# # # ### # #"
"# # #"
"# ### # ### #"
"# # #"
"### # ### # # ### #"
"# # # # #"
"# # ### # # ###"
"# # #"
"# ### ### ### # #"
"# # # #"
"### # ### #"
"# #T #"
"# # ### ### # # #"
"# # # # #"
"#####################")
("Single-Goal Maze S10E (10x10)" "layout by Andrea - Sept 99"))
(("###########"
"#T # T#"
"### # ### #"
"# # #"
"# # # # #"
"# # #T #"
"# # ### #"
"# o #"
"# # # ###"
"#T# # T#"
"###########")
("Multi-Goal Maze M5A (5x5)" "layout by Andrea - Aug 99"))
(("###########"
"# T T# #"
"### ### # #"
"#T # T#"
"# # # #"
"# # o #"
"# # ### ###"
"#T # T#"
"### # #####"
"# T T #"
"###########")
("Multi-Goal Maze M5B (5x5)" "layout by Andrea - Aug 99"))
(("###########"
"#T # T#"
"### # #####"
"# #T T #"
"# # ### #"
"# o #"
"# ### # ###"
"# T# #T #"
"# # # ### #"
"#T# T#"
"###########")
("Multi-Goal Maze M5C (5x5)" "layout by Andrea - Aug 99"))
(("#############"
"# # #T #"
"# # # # #"
"#T # #"
"### ### # ###"
"#o# #"
"# # # # #"
"# # #T#"
"### ### ###"
"#T T#"
"# # ### # #"
"# # T# #"
"#############")
("Multi-Goal Maze M6A (6x6)" "layout by Andrea - Aug 99"))
(("#############"
"#T # T#"
"### # # ### #"
"# # o# #"
"# # ### # #"
"#T# # #"
"### # ###"
"# T #"
"# # ##### #"
"# #T T#"
"# ### ### #"
"#T # T# #"
"#############")
("Multi-Goal Maze M6B (6x6)" "layout by Andrea - Aug 99"))
(("#############"
"#T# T# T#"
"# # # # ###"
"# o # #T#"
"# ### ### # #"
"# T# #"
"### # # ###"
"# T# #"
"# # ### # # #"
"#T# #T # #"
"### ### ### #"
"#T # T#"
"#############")
("Multi-Goal Maze M6C (6x6)" "layout by Andrea - Aug 99"))
(("###############"
"# T# T# T #"
"# # # ### #"
"# #"
"### ### #"
"# # #"
"# ### # # ###"
"#T #T T#"
"# ### ### ###"
"# # o#"
"### # #"
"# # #"
"# # # ### #"
"# T #T #T #"
"###############")
("Multi-Goal Maze M7A (7x7)" "layout by Andrea - Aug 99"))
(("###############"
"#T # T # #"
"# # ### # # #"
"# # o T# #"
"# # # # # #"
"# T# # T#"
"### ### # ### #"
"# # #"
"# # # ### ###"
"# #T# T #"
"# # # ### # ###"
"#T # T#"
"# ### # # #"
"# # T# #"
"###############")
("Multi-Goal Maze M7B (7x7)" "layout by Andrea - Sept 99"))
(("#################"
"# T #T #"
"# ##### ### # #"
"#T #T #"
"# # # ### #"
"# # T# #"
"# # ### # # #"
"# T #T #"
"# ### ### #"
"# # T#"
"# # # ### ###"
"#T# T o #"
"### ### ### #"
"# T#T #"
"# # ### # #"
"# T #T #T#"
"#################")
("Multi-Goal Maze M8A (8x8)" "layout by Andrea - Aug 99"))
(("#################"
"# T# #"
"# ### # ### #"
"# T # T#"
"# ### # ### #"
"# # T #"
"### # # #"
"#T #T T#"
"# ### # # #"
"# T# # #"
"# # # ###"
"# # o #"
"# # ### # #"
"# # T T # #"
"# ### # ### # #"
"#T # T #"
"#################")
("Multi-Goal Maze M8B (8x8)" "layout by Andrea - Aug 99"))
(("#################"
"# T # T #T#"
"# ### # # ### #"
"# T # #"
"# # # #"
"# T# #"
"# # ### ### #"
"#T# #T T #"
"### # # # ###"
"# #o # T#"
"# ### # #"
"# T T #"
"# ### ###"
"# T #"
"# # ### ### # #"
"#T# T #T #"
"#################")
("Multi-Goal Maze M8C (8x8)" "layout by Andrea - Sept 99"))
(("#####################"
"#T T # T# T#"
"# # ### # # #"
"# #T #"
"### ### # ### #"
"#T# T #T T #"
"# # ### ### #"
"# # T#"
"# # ### ### # # ###"
"# T# T# #"
"# ### # # #"
"# T T# T#"
"# # ### # ### # #"
"# # o T# #"
"# # # # ###"
"#T T # #"
"# ### ### # # #"
"# # #T #T #"
"### # ### # # ### #"
"#T #T # T#"
"#####################")
("Multi-Goal Maze M10A (10x10)" "layout by Andrea - Aug 99"))
(("#####################"
"# # T# T# T#"
"# # # # ### # #"
"# T # #"
"# ### # ### ### # #"
"# #T T# T# #"
"### # # # # ### #"
"#T #T #T #"
"# # ### # # # #"
"# # T#o #T#"
"# # # # ### # ### # #"
"# T# # #T #"
"# # ### # ### ###"
"# T T# # #"
"### # ### # # #"
"#T # T T#"
"# # # # ### #"
"# T T# # T# #"
"# ### ### ### # #"
"# T # T #"
"#####################")
("Multi-Goal Maze M10B (10x10)" "layout by Andrea - Sept 99"))))
(defconstant *stone-directions*
'((#\h -1 0) (#\l 1 0) (#\k 0 -1) (#\j 0 1)))
;; prints a maze
(defun print-maze-array (maze-array)
(terpri)
(destructuring-bind (width height) (array-dimensions maze-array)
(loop for y below height do
(loop for x below width do
(princ (case (aref maze-array x y)
(stone #\o)
(target #\T)
(empty #\Space)
(otherwise #\#))))
(terpri))))
;; search a field in the maze and returns (x y) as multiple values
(defun search-maze (maze-array type)
(destructuring-bind (width height) (array-dimensions maze-array)
(loop for y from 0 below height do
(loop for x from 0 below width do
(when (eql (aref maze-array x y) type)
(return-from search-maze (values x y)))))))
;; returns the coordinates of the next wall, starting at (x y), in
;; the direction (dx dy)
(defun search-wall (maze-array x y dx dy)
(loop until (eql (aref maze-array x y) 'wall) do
(incf x dx)
(incf y dy))
(values (- x dx) (- y dy)))
;; returns the number of targets
(defun count-maze-targets (maze-array)
(let ((count 0))
(destructuring-bind (width height) (array-dimensions maze-array)
(loop for y from 0 below height do
(loop for x from 0 below width do
(when (eql (aref maze-array x y) 'target) (incf count)))))
count))
;; moves the stone until it tilts to a wall in direction (dx dy)
;; while moving, it removes all targets
(defun move-stone (maze-array dx dy)
(multiple-value-bind (x y) (search-maze maze-array 'stone)
(setf (aref maze-array x y) 'empty)
(multiple-value-bind (x y) (search-wall maze-array x y dx dy)
(do ((xb x (- xb dx))
(yb y (- yb dy)))
((and (= xb x) (= yb y)))
(setf (aref maze-array xb yb) 'empty))
(setf (aref maze-array x y) 'stone))))
;; create a maze array
(defun make-maze-array (number)
(let* ((maze (car (elt *mazes* number)))
(width (length (car maze)))
(height (length maze))
(maze-array (make-array (list width height)))
(y 0))
(dolist (line maze)
(loop for x from 0 below (length line) do
(let ((char (elt line x)))
(setf (aref maze-array x y)
(case char
(#\o 'stone)
(#\T 'target)
(#\Space 'empty)
(otherwise 'wall)))))
(incf y))
maze-array))
;; interactive game play in text mode
(defun play-maze (number)
(format t "Moving keys are standard VI keys:~%")
(format t "l: right~%")
(format t "k: up~%")
(format t "j: down~%")
(format t "h: left~%")
(format t "q: quit~%")
(do* ((maze-array (make-maze-array number))
(char nil (read-char))
(direction nil (cdr (assoc char *stone-directions*))))
((eql char #\q) "quit")
(format t "~A~%" char)
(if direction
(move-stone maze-array (car direction) (cadr direction)))
(print-maze-array maze-array)
(when (= (count-maze-targets maze-array) 0) (return "won"))))

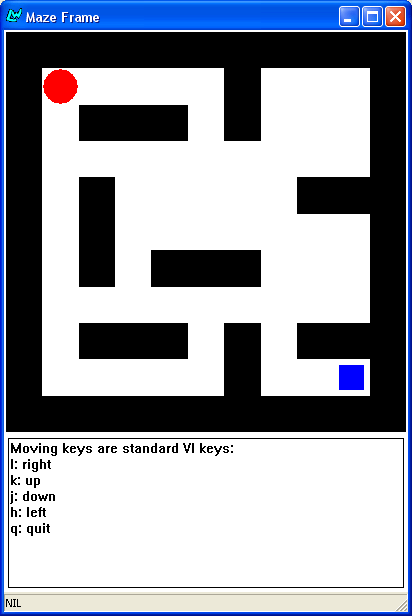

;;; CLIM GUI
define-application-frame maze-frame ()
((maze-array :initform (make-maze-array 0)
:accessor maze-array)
(maze-number :initform 0))
(:panes
(display :application
:display-function 'draw-maze-array
:scroll-bars nil
:width 400 :height 400)
(help text-editor :value
(format nil
(concatenate 'string
"Moving keys are standard VI keys:~%"
"l: right~%"
"k: up~%"
"j: down~%"
"h: left~%"
"q: quit~%")) :height 150))
(:layouts
(default
(vertically ()
display
help))))
(defun next-maze ()
(with-slots (maze-array maze-number) *application-frame*
(incf maze-number)
(when (= (length *mazes*) maze-number) (setf maze-number 0))
(setf maze-array (make-maze-array maze-number))))
(define-maze-frame-command (com-exit :keystroke #\q) ()
(frame-exit *application-frame*))
(defun check-for-win (maze-array)
(when (= (count-maze-targets maze-array) 0) (next-maze)))
(defmacro define-stone-move-command (name keystroke dx dy)
`(define-maze-frame-command (,name :keystroke ,keystroke) ()
(let ((maze-array (maze-array *application-frame*)))
(move-stone maze-array ,dx ,dy)
(check-for-win maze-array))))
(define-stone-move-command com-right #\l 1 0)
(define-stone-move-command com-up #\k 0 -1)
(define-stone-move-command com-down #\j 0 1)
(define-stone-move-command com-left #\h -1 0)
(defmethod read-maze-frame-command ((maze maze-frame) &key (stream *standard-input*))
(let ((abort-chars #+Genera '(#\Abort #\End)
#-Genera nil))
(let ((command (read-command-using-keystrokes
(frame-command-table maze) abort-chars
:stream stream)))
(if (characterp command)
(frame-exit maze)
command))))
(defun draw-stone (stream x y cell-width cell-height)
(let ((half-cell-width (/ cell-width 2))
(half-cell-height (/ cell-height 2)))
(draw-ellipse* stream
(+ (* x cell-width) half-cell-width)
(+ (* y cell-height) half-cell-height)
half-cell-width 0
0 half-cell-height
:ink +red+)))
(defun draw-target (stream x y cell-width cell-height)
(let ((x0 (+ (* x cell-width) 2))
(y0 (+ (* y cell-height) 2))
(x-distance (/ cell-width 5))
(y-distance (/ cell-height 5)))
(draw-rectangle* stream
(+ x0 (/ x-distance 2))
(+ y0 (/ y-distance 2))
(- (+ x0 cell-width) x-distance)
(- (+ y0 cell-height) y-distance)
:ink +blue+)))
(defun draw-empty (stream x y cell-width cell-height)
(declare (ignore stream x y cell-width cell-height))
())
(defun draw-wall (stream x y cell-width cell-height)
(let ((x0 (* x cell-width))
(y0 (* y cell-height)))
(draw-rectangle* stream x0 y0 (+ x0 cell-width) (+ y0 cell-height))))
(defmethod draw-maze-array ((maze maze-frame) stream &key max-width max-height)
(declare (ignore max-width max-height))
(let ((maze-array (maze-array maze)))
(destructuring-bind (width height) (array-dimensions maze-array)
(let* ((pane-width (bounding-rectangle-width stream))
(pane-height (bounding-rectangle-height stream))
(cell-width (/ pane-width width))
(cell-height (/ pane-height height)))
(loop for y below height do
(loop for x below width do
(let ((cell (aref maze-array x y)))
(cond
((eql cell 'stone) (draw-stone stream x y cell-width cell-height))
((eql cell 'target) (draw-target stream x y cell-width cell-height))
((eql cell 'empty) (draw-empty stream x y cell-width cell-height))
(t (draw-wall stream x y cell-width cell-height))))))))))
(defun play-maze-clim ()
(let ((frame (make-application-frame 'maze-frame)))
(run-frame-top-level frame)))
;;; Solving Algorithm
;;; A path looks like this: (x y "hlkj"), where x and y are the current
;;; endpoint and the string are the movements from start.
;;; The algorithm starts with the path (x y ""), where x and y are the
;;; start position of the stone, and adds every iteration all possible
;;; new movements, but only, if the path is shorter. If there are no more
;;; shorter paths for all possible new movements, the search is finished.
;; get all possible movements as new paths
(defun get-possible-new-paths (maze-array path)
(let ((possible-new-paths nil))
(destructuring-bind (x y path-string) path
(dolist (direction *stone-directions*)
(destructuring-bind (name dx dy) direction
(multiple-value-bind (x-new y-new) (search-wall maze-array x y dx dy)
(when (not (and (= x x-new) (= y y-new)))
(setf possible-new-paths
(cons (list x-new y-new
(concatenate 'string path-string (string name)))
possible-new-paths)))))))
possible-new-paths))
;; search and return the path for the endposition (x y), or return nil
(defun search-path (paths x y)
(if (null paths)
nil
(let* ((path (car paths))
(x2 (car path))
(y2 (cadr path)))
(if (and (= x x2) (= y y2))
paths
(search-path (cdr paths) x y)))))
;; creates a new paths list with all possible new movements, which results
;; in shorter paths for the same endpoint
(defun solve-iteration (maze-array paths)
(let ((new-paths (copy-list paths)))
(dolist (path paths)
(dolist (possible-new-path (get-possible-new-paths maze-array path))
(let* ((existing-path-cons
(search-path new-paths (car possible-new-path) (cadr possible-new-path)))
(existing-path (car existing-path-cons)))
(if existing-path-cons
(let ((existing-path-string (car (last existing-path)))
(possible-path-string (car (last possible-new-path))))
(when (< (length possible-path-string) (length existing-path-string))
(rplaca existing-path-cons possible-new-path)))
(setf new-paths (cons possible-new-path new-paths))))))
new-paths))
;; print the solution, if all targets were found
(defun solve-solution (maze-array paths)
(print-maze-array maze-array)
(multiple-value-bind (x y) (search-maze maze-array 'target)
(let ((solution-path (search-path paths x y)))
(if solution-path
(format t "solution: ~A" (caddar solution-path))
(format t "no solution found")))))
;; solve a maze
(defun solve-maze (number)
(let* ((maze-array (make-maze-array number))
(paths `((,@(multiple-value-list (search-maze maze-array 'stone)) "")))
(old-len 0))
(do ((len 1 (length paths)))
((= len old-len) (solve-solution maze-array paths))
(setf old-len len)
(setf paths (solve-iteration maze-array paths)))))
PL 숙제를 리습으로 작성하려고 무진장 애를 쓰는 중입니다. 간만에 다른 언어를 배울 기회라고 생각되어져서 가능하면 지금까지 배웠던 언어와는 완전하 다른 패러다임의 언어를 해보고 싶었는데... -_-;; 진입 장벽이 너무 높네요.
페인터를 구현하려고 하는데 GUI 라이브러리를 구하는게 하늘의 별따기 입니다. LispWorks 는 무료판에서는 아예 GUI 라이브러리는 손도 못대게 되있고... (require :clim) 만 들어가면 무조건 애러를 뱉어내는 대담성... ㅡ.ㅡ; (때릴 수도 없고..)
그래서 지금은 라이브러리를 못구하면 아예 앞으로 계속 써먹을 언어를 배운다 치고... 펄이나 파이선, 델파이 중에서 하나를 골라보려고 생각중입니다.
페인터를 구현하려고 하는데 GUI 라이브러리를 구하는게 하늘의 별따기 입니다. LispWorks 는 무료판에서는 아예 GUI 라이브러리는 손도 못대게 되있고... (require :clim) 만 들어가면 무조건 애러를 뱉어내는 대담성... ㅡ.ㅡ; (때릴 수도 없고..)
그래서 지금은 라이브러리를 못구하면 아예 앞으로 계속 써먹을 언어를 배운다 치고... 펄이나 파이선, 델파이 중에서 하나를 골라보려고 생각중입니다.
